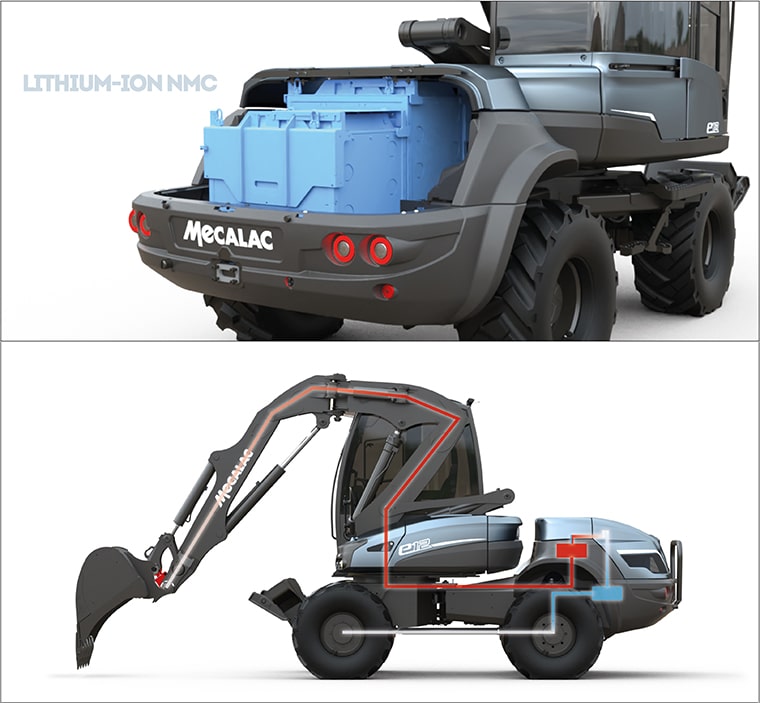

The electric version of the 12MTX fits perfectly within Mecalac's philosophy of moving towards urban construction sites that are ever-more compact, efficient and environmentally friendly. The architecture of the diesel 12MTX makes it the natural forerunner of the electric version, so the location for the engine now houses a Lithium Nickel-Manganese-Cobalt (NMC) battery technology, ideal for on-board solutions.
This technology combines weight/power/quality ratios that are far superior to conventional batteries with an optimized service life and total safety.

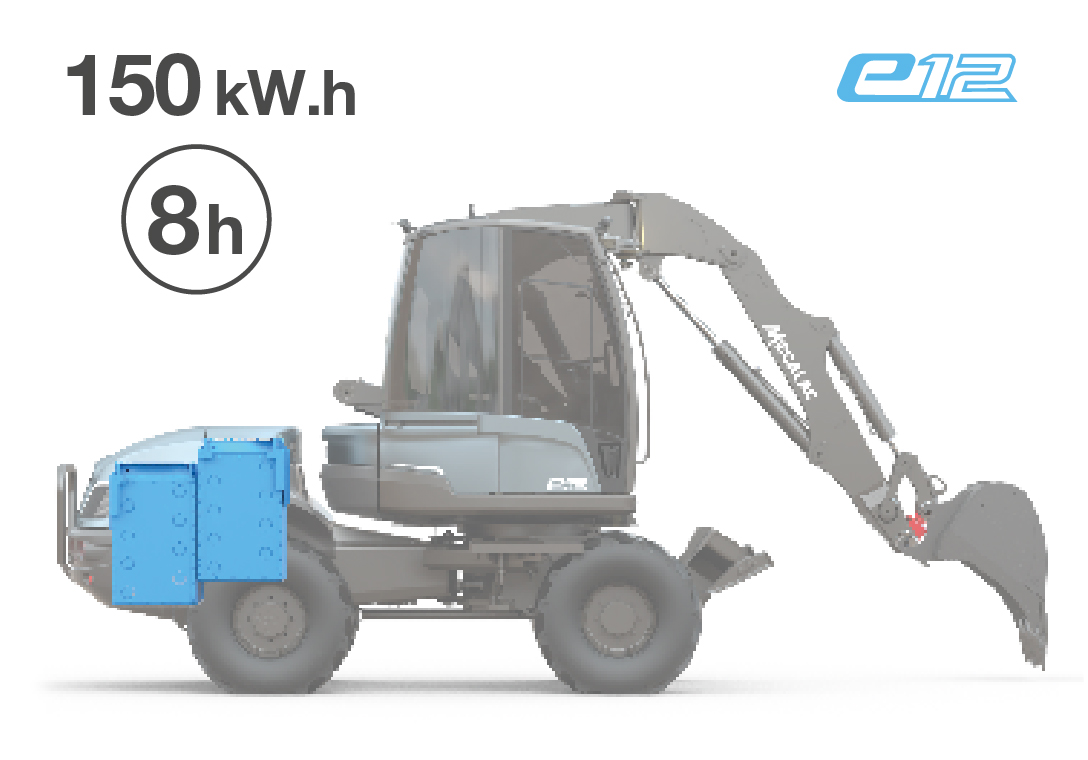

It takes only 8 hours to charge the e12. Without compromising on power, it does the job all day long without having to recharge its batteries, for 8 hours of autonomy.
The Mecalac e12 means less vibration, less noise, less maintenance (no more filters, no more oil...), less risk of on-site accidents, less spent on maintenance and absolutely no CO2 or particulate emission.
e12
Switch to
Performance
A new direction for urban jobsites
With a structure designed for urban environments from the outset and two independent electric motors, one powering the front linkage and work tools and one for the transmission, the Mecalac e12 is destined for urban machine fleets.
In addition to its performance and autonomy, its 100% electric transmission offers unrivalled traction force as soon as it starts and energy regeneration when braking. The incredible power density of the electric motors makes it possible to preserve extreme compactness and they do not require any maintenance.
e12
Switch to
Compactness
Freedom of movement

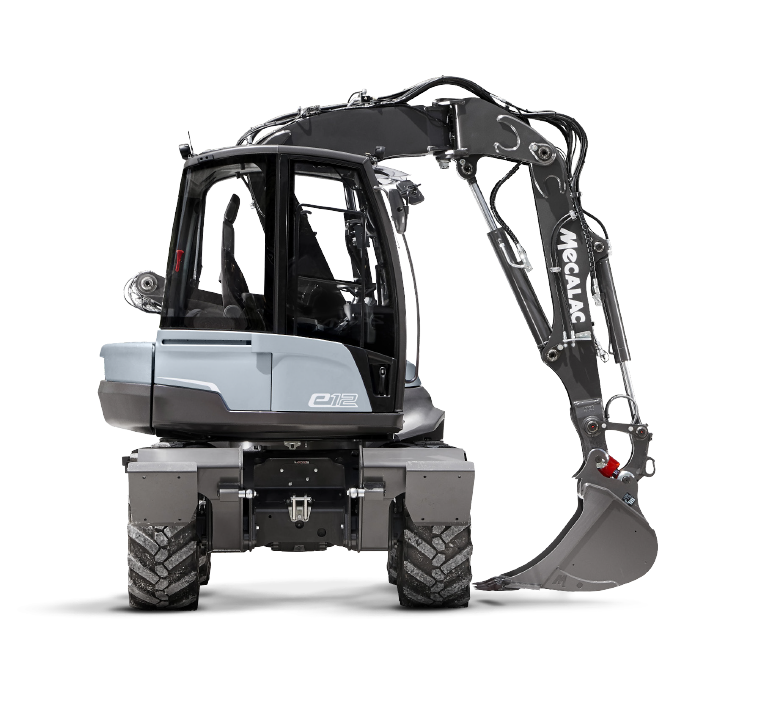

With a full 360° swing diameter of only 2710 mm (8’11’’), a 2.25 m (7’4’’) turning radius at wheels and an outstanding boom tilt angle (140°), the e12 only needs one road lane in urban areas to carry out its work. Traffic can continue with only a minimum of interruptions while the operator is able to work closer to the various obstacles he may come across.
Efficient, the e12 offers compactness, while capitalizing on all its functionalities and capacities with a minimal impact on city environments. Its articulated chassis allows it to move easily on any job site, and its agility also contributes to its overall performance.
e12 in action
Specifications
Total operating weight
11 300 kg (24,912 lbs)
Rated storage capacity
150 kWh
Power supply
32A 380V three phase (22kW)
Battery runtime
8 hrs
Tail swing radius
1385 mm (4’6’’)
Minimum full swing diameter
2770 mm (9’1’’)
Travel speed
25 km/h (15.5 mph)
Motorisation
Electric
Overall width
2383 mm (7’8’’)
+ and - with forks
+ 6000 mm (+19’8”) / - 3700 mm (-12’1”)
Maximum reach
7125 mm (23’4”)
